There are two forms of diesel emulsification equipment, one is continuous and the other is intermittent. The diesel emulsification process can be completed in two modes of operation. The two emulsification devices are now introduced as follows:
First, the introduction of continuous emulsification device

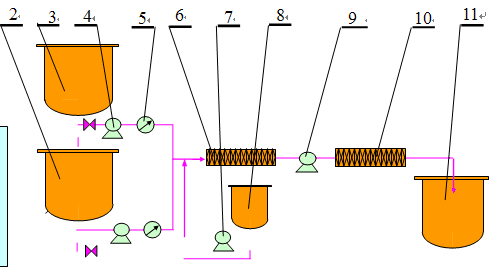

         The continuous emulsification device is shown in the following figure. The whole system consists of water tank, diesel tank, gear pump, flow meter, static mixer, metering pump, emulsifier tank, high shear emulsification pump and so on.

  ●Production process flow chart

二、 The introduction of batch emulsification device

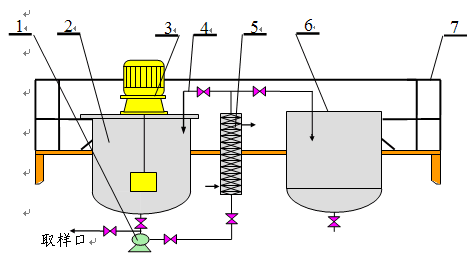

         The batch emulsification device is shown in the figure below. The whole system consists of a high shear emulsification pump, a flat cap reaction kettle, a high shear emulsifier, a transfer pump, a flow meter, a static mixer, and a finished tank.

●Production process flow chart
