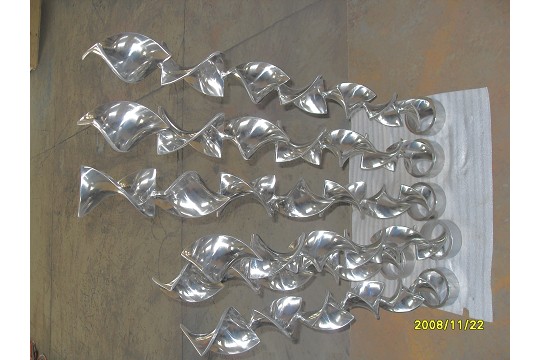

The static mixer is a kind of efficient and efficient equipment without power. Through the external energy, he produces the motion of the material. Through the mixing unit fixed in the tube, two or more flows of fluid are cut, impacted, and then mixed to achieve the purpose of good dispersion and full mixing between the fluids. The unit of the SV type static mixer is a cylinder composed of a certain size corrugated plate. It is suitable for the mixed emulsion, reaction, absorption, extraction and heat transfer of liquid and liquid phase, gas-liquid phase and gas phase. The mixing unit of the SX type static mixer consists of a number of X units, which are composed of cross bars according to certain rules. It is suitable for medium and high viscosity liquid - liquid reaction, mixing, or production of polymer fluid mixing and reaction process, and the use effect is better when the treatment is large. The mixing unit of SK static mixer is composed of left and right twisted spiral plates. It is suitable for mixing liquid-liquid, liquid-solid and high viscosity materials. The mixing unit of the SH type static mixer consists of a double pass, a spiral piece in the channel, a 90 degree dislocation in the azimuth of the double pass of the adjacent unit, and a fluid redistribution room between the units. It is suitable for the mixed emulsion of liquid liquid medium. It is often used in the mixing and emulsification of the departments of fine processing, plastic, synthetic fiber and mining. Color matching, etc.
