According to the different internal structure, the pipeline type emulsifier can be divided into single, single, two, and multi (three grade) emulsifying machines, which are divided into horizontal pipeline emulsifier and vertical pipeline emulsifier according to the installation method. There are only one pair of stator in the working chamber of the single stage emulsifier. There are three pairs of stator in the working chamber of the two stage emulsifier, and three pairs of stator in the working stage of the three stage emulsifier. The stator is divided into two layers, four layers and six layers according to the number of layers.

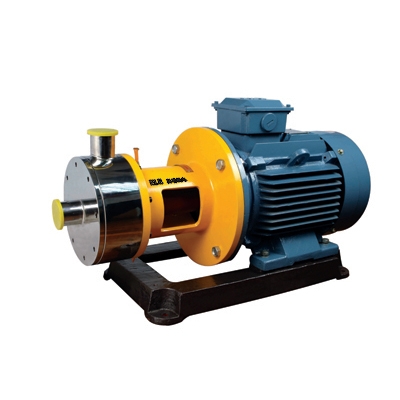

The pipeline type high shear emulsifying machine has good conveying function, and can realize continuous production and automatic control. The pipeline type high shear emulsifying machine has the characteristics of large volume, quick, high efficiency, energy saving and no dead angle. Material 100% is simple and convenient to use through shearing.
The maintenance and maintenance of the pipeline emulsifier is also very important. If it runs for a long time, the teeth of the stator will have a certain wear and tear, resulting in the increase of the clearance between the stator and the effect of the shearing emulsification, so it is necessary to remove the maintenance and check regularly.
The maintenance of the emulsion pump should be dismantled in order: first disconnect the connection line, and then unload the head end cover. The back of the general end cover is the first stage stator of the emulsified pump, the stator may be a layer, or the two and three layers. If you can't easily remove it, you should tap the vibration with a wooden hammer or a rubber hammer, and pull it down after the end cap is loose; after the end cover is unloaded, it is the first stage rotor. The rotor is fixed on the shaft with the key, and rotating at high speed under the direct drive of the shaft. Shaft end is the rotor fixed screw cap, first screwing down the nut, gently pulling the rotor out to the shaft end, if the card is tight, can gently knock the rotor, but can not knock on the rotor teeth, can only knock the rotor disc, wait for the rotor on the shaft loosening, and then pull out the rotor. In accordance with the same method, the second and third stage stator of the pipeline emulsifying machine are separately removed.
When dismantling, avoid barbarian dismantling, otherwise it will cause the deformation of the stator and the gear shaft, and it will also cause the deformation of the transmission shaft, which will cause the transmission shaft to be unable to repair.
