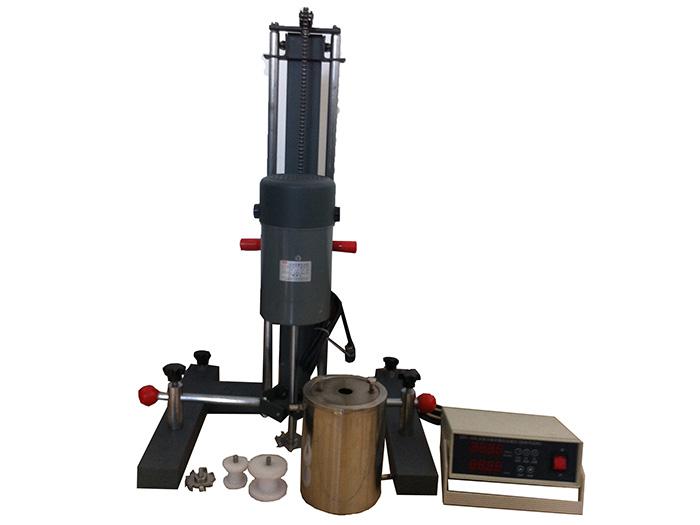

The SDF400 multipurpose laboratory disperser is a machine for mixing solid and liquid materials, stirring, grinding and dispersing powdery materials and liquid materials. The machine has two functions of dispersing and grinding. The machine adopts two axis constant force lifting system, which is convenient for lifting. Adopting intelligent speed control instrument, the motor is stepless speed regulation. The control precision is high and the speed of the digital display is displayed. The container is fixed by the left and right gripper, and the container adopts a jacket structure, which can be cooled by water.
In the process of use, we must regularly check the wear of the brush. In general, the remaining 6mm of the brush will need to be replaced. When replacing the brush, the power supply must be cut off, the brush cover is screwed, the residual brush is pulled out, the new brush is inserted into the tube free activity, and the card is prevented from being stuck in the tube and the brush cover is turned on. If the motor is not operating in the use, it should first check whether the power plug is reliable, whether the wiring is broken off, the brush is in good contact, and the above failure can not operate normally. The professional personnel should be repaired, and do not disassemble freely to avoid the accident. After the work is finished, the cutter shaft should be cleaned in time to facilitate the next use. The cutter shaft should be properly placed and can not be dropped. The dispersion and homogenization process should be carried out in liquid, and no escape from the medium is strictly prohibited. This machine is not suitable for solid dispersion.
If the speed is not stable, if the speed is slow and slow, even the high-speed operation can not be adjusted, the power supply should be removed immediately, the rear cover of the motor is opened, the counter with the groove on the upper part of the motor is dismantled and then installed with alcohol. In general, this problem can be solved, if it can not be solved, it must be replaced. The number device.
The machine must be placed in a clean and dry place, keep clean and keep from damp. The ambient temperature is generally not more than 40 degrees centigrade
