 The reaction kettle series  >> Electric heating Reactor (jacket heating)

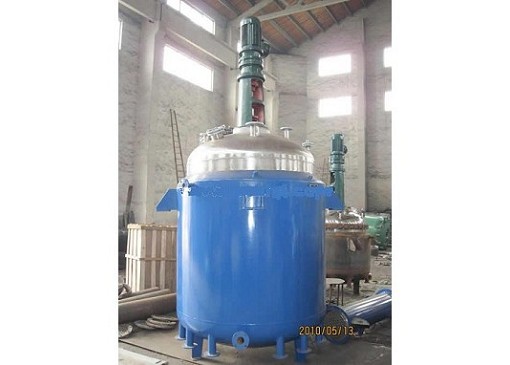

Electric heating Reactor (jacket heating)
Product details
     According to the heating/cooling method, it can be divided into electric heating, steam heating, hot water heating, heat conduction oil circulation heating, far-infrared heating, outer (inner) coil heating, jacket cooling and kettle coil cooling. The choice of heating method is primarily related to the heating/cooling temperature required for the chemical reaction and the amount of heat required.
According to the material of the kettle body, it can be divided into a carbon steel reactor, a stainless steel reactor, a enamel glass reactor (enamel reactor), and a steel lining reactor.
The internal pressure at work can be divided into normal pressure reactors, positive pressure reaction vessels, and secondary pressure reaction vessels.

The stirring mode can be divided into paddle type, anchor type, frame type, ribbon type, turbine type, dispersive disc type, and combination type.

Reactor technical parameters


Reactor technical parameters
specification  Barrel diameter   Outer diameter         power kw          Stirring speed r.p.m
30                         400                   500                   0.6                   60-100
100                       550                   650                   1.1                    60-100
200                       650                   750                   2.2                    60-100
300                       800                   900                   3                       60-100
500                       900                  1000                  3                       60-100
1000                     1200                 1300                  4                       60-100
2000                     1400                 1500                  5.5                    60-100
3000                     1400                 1500                  7.5                    60-100
4000                     1500                 1600                  7.5                    60-100
5000                     1600                 1700                  7.5                    60-100
18000                   2000                 2100                  15                     60-100
32000                   3000                 3200                  37                     35-59

The actual parameters may vary, please refer to the actual parameters
