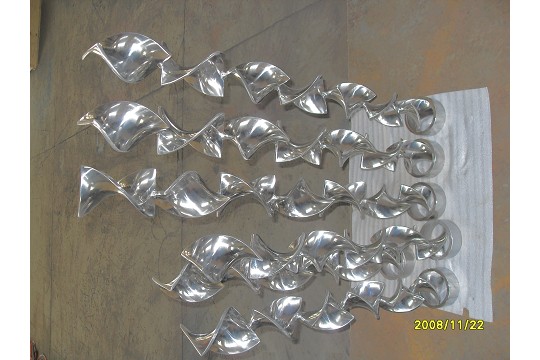

■ Noil SK static mixer
The unit consists of a spiral plate of single-channel left and right torsion, and its technical performance: maximum dispersion degree is less than 10um, liquid-liquid, liquid-solid phase non-uniformity coefficient s X is less than 5%. Applicable to chemical, petroleum, pharmaceutical, food, fine processing, plastic, environmental protection, synthetic fiber, mineral treatment and other departments of mixing, reaction, extraction, absorption, injection, color transfer and other processes. It is suitable for the small flow and the highly viscous medium with impurity or viscosity less than 106 mm.

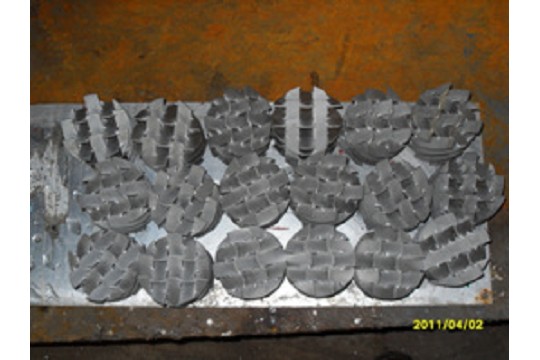

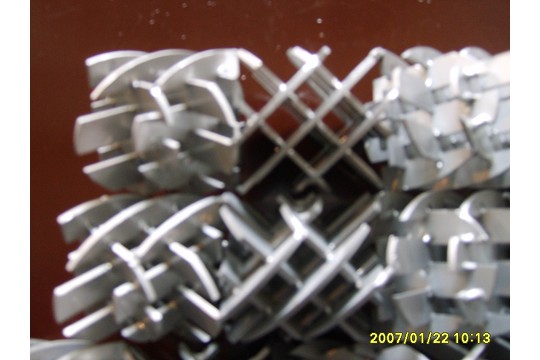

■ Noil SX static mixer
The unit is composed of a cross bar with a certain rule to form many X units, technical characteristics: the mixing uneven degree is s X is less than or equal to 1 ~ 5%. It is suitable for the mixing and reaction process of medium and high viscosity liquid-liquid reaction, mixing, absorbing process or production of high polymer fluid, which can be used more effectively.
■ The noil SH static mixer
Unit is composed of double channel, the pore screw placement, adjacent unit azimuth misalignment of the double channel 90 °, the room is equipped with fluid redistribution between units. Technical characteristics: the maximum dispersion degree is 1-2mm, and the inhomogeneity of liquid-liquid phase is: s X is less than or equal to 1 ~ 5%. Suitable for fine processing, plastics, synthetic fiber, mineral departments such as mixing, emulsifying, color matching, injection molding, spinning and heat transfer process, such as the small flow, mixed demanding high viscosity (106 centipoise or less) is particularly suitable for cleaning medium.
■T he noil SL type static mixer
The unit is composed of a single X unit by the cross bar, and the technical characteristics are liquid-liquid, liquid-solid and non-uniformity coefficient s X is less than 5%. Viscosity is suitable for chemical, oil, grease and other industry or less 106 centipoise or mixed with polymer medium, at the same time response of heat transfer and mixing and heat transfer heat exchanger, heating or cooling unit operations such as viscous products
