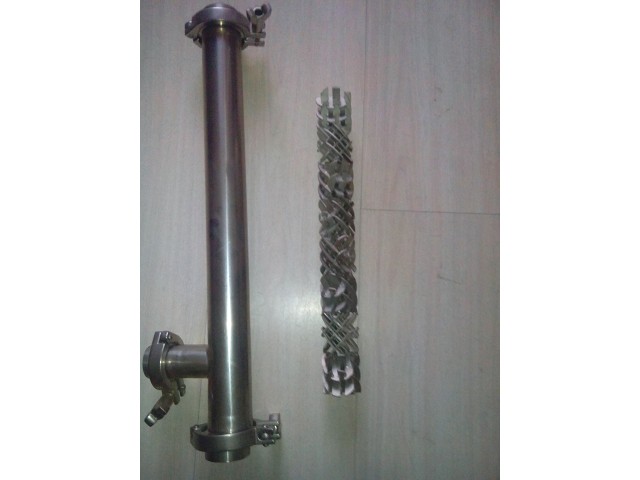

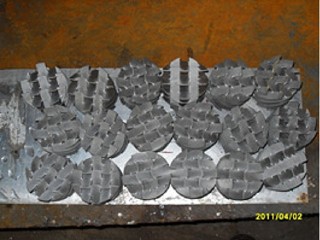

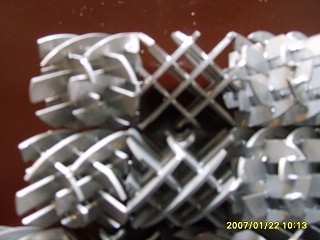

The interior of the SX type static mixer unit consisting of cross stripes, stripes and the axis of the tube shell 45 °.SX type hybrid effect between the SV and SK type, when used for emulsifying process can make the droplets dispersed to 2 to 5 microns, used in the mixing process of general not uniformity coefficient, amplification effect is not big.SX type static mixer < pressure drop calculation is based on the hydraulic diameter of the benchmark, and considering the influence of the void fraction of the coefficient of friction。
SX type pressure drop calculation formula
△P=(f*ρc/ε2W2)*L/dh Re=dh*ρc*w/μ*ε
W=(Q/πD2*900)*10^6 1Kg（f）/cm2=98100N/m2
dh=（πD2L-4Aδ）/(2A+πDL)
△PFriction coefficient （N/m2） f friction coefficient (dimensionless) ρc fluid density（Kg/m3）
WFluid linear velocity（m/s） Lmixer length（mm） dhHydraulic diameter（mm）
εVoid fraction (non-dimensional) μfluid viscosity（CP） A hybrid unit area（mm2）
δUnit material thickness（mm） pipe diamete（mm） Reynolds number (dimensionless)
The relational table of the SX Reynolds number Re epsilon and the friction coefficient f
|
appellation
|
SK型
|
|
Laminar
flow
|
range
|
Re ε < 13
|
|
Relation
between
|
f=285/Re ε
|
|
Transition
flow zone
|
range
|
13 < Re ε < 70
|
|
Relation
between
|
f=74.7 Re ε -0.478
|
|
Turbulence
zone
|
range
|
70 < Re ε < 2000
|
|
Relation
between
|
f=22.3 Re ε -0.194
|
|
Completely
turbulent region
|
range
|
Re ε > 2000
|
|
Relation
between
|
f=5.11
|
SX type product specification table
|
Gauge
|
Nominal
diametemm
|
Hydraulic
diameter
mm
|
Traffic
m3/h
|
Gauge
|
Nominal
Diameter
mm
|
Hydraulic
Diameter
mm
|
Traffic
m3/h
|
|
SX-12.5/50
|
50
|
12.5
|
3.5-7.0
|
SX-50/200
|
200
|
50
|
56-110
|
|
SX-16.25/65
|
65
|
16.25
|
6-12
|
SX-62.5/250
|
250
|
62.5
|
88-176
|
|
SX-20/80
|
80
|
20
|
9-18
|
SX-75/300
|
300
|
75
|
125-250
|
|
SX-25/100
|
100
|
25
|
14-28
|
SX-87.5/350
|
350
|
87.5
|
173-346
|
|
SX-31.25/125
|
125
|
31.25
|
22-44
|
SX-100/400
|
400
|
100
|
226-452
|
|
SX-37.5/150
|
150
|
37.5
|
30-60
|
SX-125/500
|
500
|
125
|
353-706
|
Description:
1. Nominal pressure is selected according to the user's process conditions
2. Materials: stainless steel, carbon steel, titanium, polyfluorine, polypropylene, etc
3. Flange standard: matching with the user interface, the matching flange can be provided
4. The mixing unit can be designed as a drawable or stationary
5. Flow rate per hour is based on water

|
