 The reaction kettle series  >>  Reactor (combined)

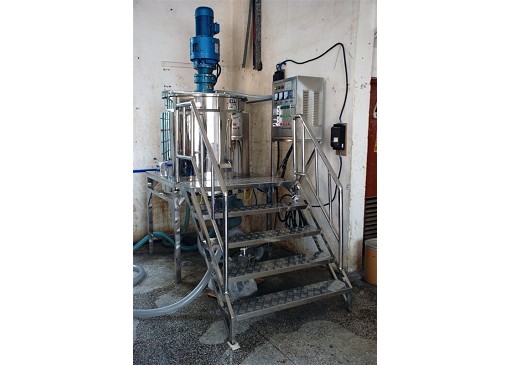

Reactor (combined)
Product details


1、The various reaction kettle produced by our factory consists of pot cover, tube body, jacket, agitator, shaft seal transmission device and support

2、Our factory mainly produces the following reaction kettle: flat cap reaction kettle, sealed vacuum reaction kettle, jacketed heating reaction kettle, half-coil tube heating or cooling reaction kettle, special class reaction kettle. Materials are made of carbon steel, stainless steel, special materials, etc. Heating methods include electric heater, steam, heat conduction oil and so on.

2, our factory specialized in manufacturing all kinds of material reaction kettle and undertake all kinds of chemical industry, light industry non-standard equipment design and manufacture, welcome customers at home and abroad.

3, our factory production of reaction kettle stirring type including all kinds of traditional slurry mixing, turbine mixing, pusher, anchor type mixing, frame, ribbon, sawtooth disk type and compound type stirring, etc.

4, our factory special recommend high shear emulsifying reaction kettle, box type mixing, high shear emulsifying machine with the qing wall of combined-type mixing reaction kettle. The obvious advantages of her is a concentration of dispersing, mixing, emulsifying, homogeneous, crushing functions in an organic whole, greatly enhanced, high quality, high efficiency.

Reactor technical parameters
specification  Barrel diameter   Outer diameter         power kw          Stirring speed r.p.m
30                         400                   500                   0.6                   60-100
100                       550                   650                   1.1                    60-100
200                       650                   750                   2.2                    60-100
300                       800                   900                   3                       60-100
500                       900                  1000                  3                       60-100
1000                     1200                 1300                  4                       60-100
2000                     1400                 1500                  5.5                    60-100
3000                     1400                 1500                  7.5                    60-100
4000                     1500                 1600                  7.5                    60-100
5000                     1600                 1700                  7.5                    60-100
18000                   2000                 2100                  15                     60-100
32000                   3000                 3200                  37                     35-59

The actual parameters may vary, please refer to the actual parameters
